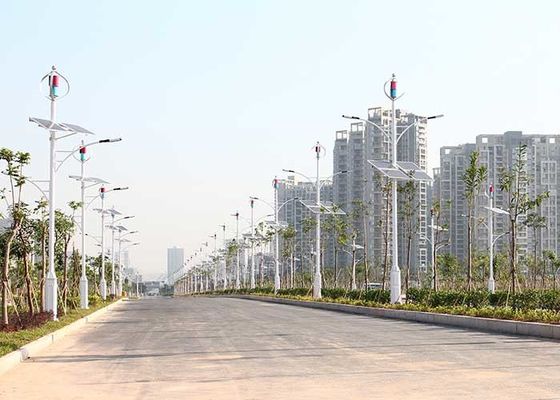

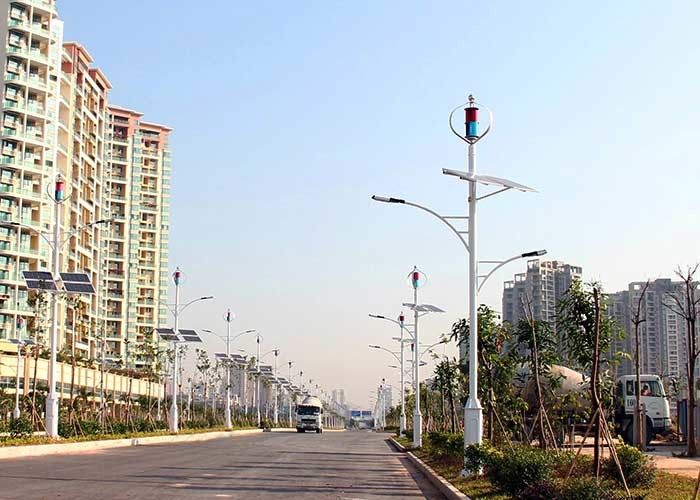

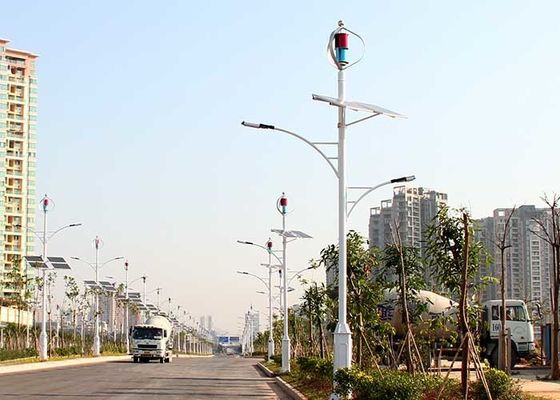

Street Lamp Hybrid Wind And Solar Electric Systems 600w Maglev Wind Generator

City Proper Street Lamp Hybrid Solar And Wind Power Generation Highway Lighting


The Hybrid Solar And Wind Power Generation system consists of small wind turbines, solar photovoltaic panels, wind-solar complementary controllers, maintenance-free colloidal batteries, lighting fixtures and outdoor off-grid road power supply and lighting systems for installation and fixing of lamp poles, lamp arms and installation accessories. Where the average annual wind speed exceeds 3.0 m/s, the total solar radiation is not less than 3200. MJ/Landscape Complementary Street Lighting Areas can be installed on roads, scenic spots and courtyards in urban, suburban and rural areas.

Design standard:

1.  Design according to grade 2 Road standard.
2. LED lighting: 20W (white 1950LM), 60W (white 4320LM), 80W (white 7600LM);
3. Adopt the latest internationally popular designs:

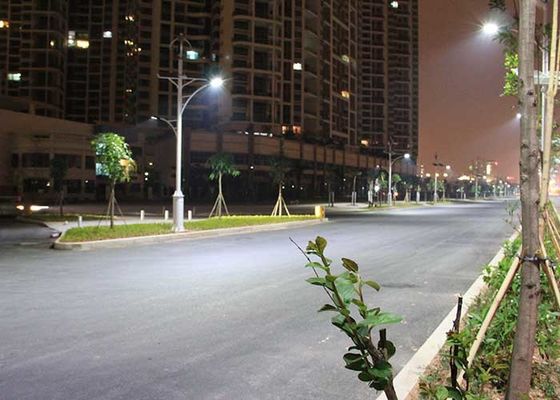

• The pavement is illuminated for 10-11 hours per night, with full power controlled by light;
• The main lane is illuminated by light control or remote control every night. Full power lighting from 18 to 0 p.m. Half-power illumination is used after 0:00.

The second design is the most popular method in the world, mainly from the perspective of safety and light pollution prevention. The pedestrian traffic is small in the morning and night, but considering the safety of pedestrians at night, it is designed to light all night. The main lane has less traffic at night, so the illumination can be reduced. In addition, considering the overall environment of the city, the influence of the road on the residents along the road should be considered in the design of the road. Late at night, if the lights are still bright, it will affect the normal rest of residents along the line. Therefore, the prevention of light pollution should be included in road design.

Maglev Vertical Axis Wind Turbine:

Vertical Axis Wind turbine:

1. The application of magnetic suspension technology makes the fan turn smoothly and efficiently without any mechanical friction.
2. The blade is made of high strength light aluminium alloy with hollow drawing, streamlined design, smooth rotation and no noise.
3. Low starting wind speed, good typhoon resistance, anti-corrosion and sand resistance.
4. Vertical axis design, beautiful shape, soft color, easy identification of birds.
5. The spherical lightning protection equipment can effectively prevent natural lightning. The lightning protection standard meets the National Lightning Protection Standard of China GB50057-94.
6. Low voltage 12V DC output, no electric shock danger.
7. The service life exceeds 20 years.

Design concept

1. No transformer is installed.
2. No electricity from the market;
3. Power supply by wind-solar complementary system;
4. Energy saving rate is 100%.
5. Zero carbon emissions;
6. Special weather, such as cloudy and rainy weather, can illuminate normally for 4 days.
7. Fighting the influence of tropical cyclone (typhoon);
8. Batteries are stored at the bottom of the lamp pole and the controller box is equipped with the newly designed anti-theft lock.
9. Lightning protection device is added to the wind and solar hybrid street light system.
