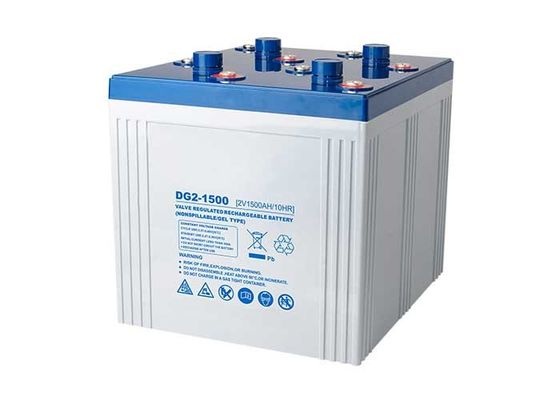

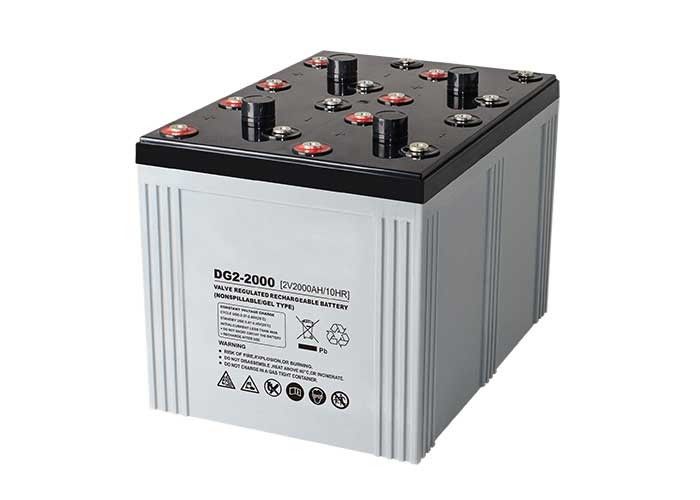

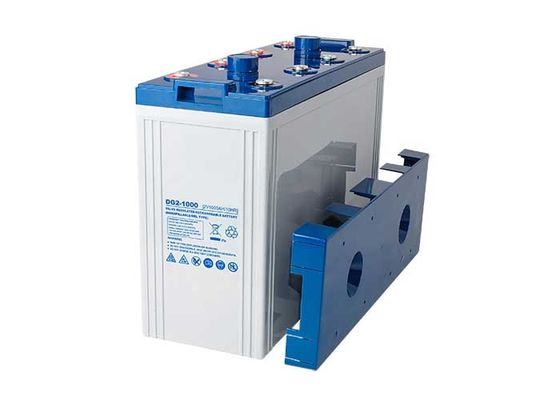

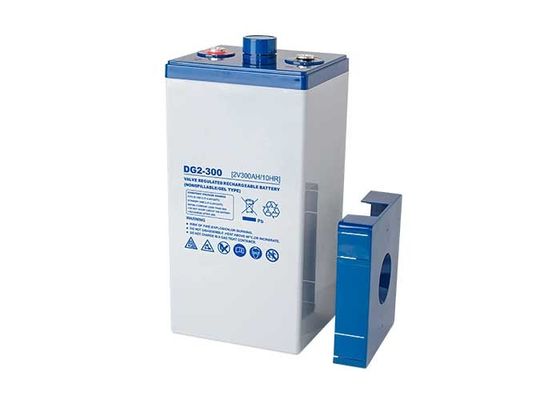

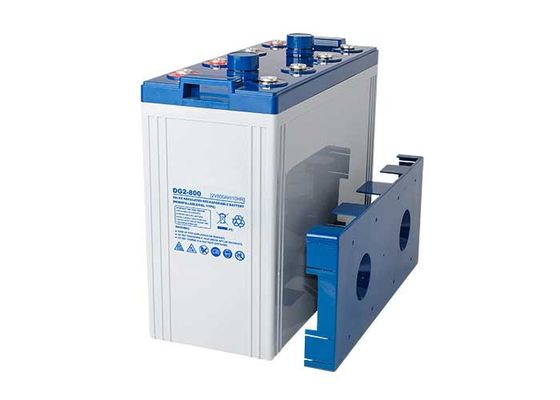

Deep Cycle GEL Lead Lead Acid Battery 3000Ah 2V Environmental Friendly
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | CE,UL |
| Model Number: | UDG-2V (200Ah-3000Ah) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood box |
| Delivery Time: | 5-15 days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS/week |
Detailed Product Description
| Voltage: | 2V | Product Name: | Lead Acid Battery |
|---|---|---|---|
| Capacity: | 200Ah-3000Ah | Type: | Deep Cycle GEL Lead Acid Battery |
| Terminal: | Copper Terminal | Application: | Solar Wind System, LED Light System, Home System |
| Highlight: | valve regulated lead acid battery,deep cycle lead acid battery |
||
2V Series UDG-200Ah-3000Ah Colloid Deep Cycle GEL Lead Acid Battery Industrial
Description:
DG (Deep Cycle GEL)series is pure GEL battery with 15~20 years floating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments.By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery after deep discharge under frequent cyclicdischarge use, and can deliver 400 cycles at 100% DOD. Suitable for solar,CATV, marine, RV and deep discharge UPS,communication , and telecommunication , etc.
UDG Series Technical Features:
It is mainly used in battery equipment that often requires deep discharge, which is 30% higher than the normal model. Resistant to over-discharge, shock, shock, and long storage life. High-quality alloy grid and unique electrolyte formula, fine and perfect processing technology, the battery has the characteristics of large capacity, small self-discharge rate and long service life. Safe sealing structure, no need to add acid and water to maintain, no acid leakage, no acid mist, environmental protection and no pollution.
Product Details:
| Battery Model | Voltage (V) | Capacity (Ah) | Weight (Kg) | Terminals | Dimensions (mm) | Internal resistance | |||
|---|---|---|---|---|---|---|---|---|---|
| Long | wide | High | Total Height | ||||||
| UDG2-200 | 2 | 200 | 14.0 | F10 | 171 | 111 | 366 | 366 | 0.8 |
| UDG2-250 | 2 | 250 | 17.5 | F10 | 171 | 150 | 365 | 365 | 1.17 |
| UDG2-350 | 2 | 350 | 24.5 | F10 | 211 | 176 | 329 | 366 | 0.8 |
| UDG2-400 | 2 | 400 | 26.0 | F10 | 211 | 176 | 329 | 366 | 1 |
| UDG2-450 | 2 | 450 | 29.0 | F10 | 211 | 176 | 329 | 366 | 1 |
| UDG2-500 | 2 | 500 | 30.5 | F10 | 242 | 172 | 329 | 366 | 1 |
| UDG2-600 | 2 | 600 | 37.0 | F10 | 302 | 175 | 328 | 365 | 0.63 |
| UDG2-650 | 2 | 650 | 40.0 | F10 | 302 | 175 | 328 | 365 | 0.6 |
| UDG2-750 | 2 | 750 | 46.0 | F10 | 411 | 175 | 327 | 368 | 0.6 |
| UDG2-800 | 2 | 800 | 50.0 | F10 | 411 | 175 | 327 | 368 | 0.6 |
| UDG2-1000 | 2 | 1000 | 62.0 | F10 | 479 | 175 | 327 | 368 | 0.6 |
| UDG2-1200 | 2 | 1200 | 74.0 | F10 | 479 | 175 | 327 | 368 | 0.81 |
| UDG2-1500 | 2 | 1500 | 96.0 | F10 | 401 | 352 | 338 | 383 | 0.75 |
| UDG2-2000 | 2 | 2000 | 126.5 | F10 | 490 | 349 | 338 | 383 | 0.4 |
| UDG2-2500 | 2 | 2500 | 171 | F10 | 712 | 351 | 338 | 383 | 0.3 |
| UDG2-3000 | 2 | 3000 | 193 | F10 | 712 | 351 | 338 | 383 | 0.3 |
Lead Acid Battery Terminal Size Chart (PDF)
Design Features
- Designed especially for frequent cyclic discharges.
- Special grid alloy.
- Excellent plate formula.
- Achieve more than 300 cycles under 100% DOD conditions.
- Applicable to wind and solar hybrid systems, solar systems, wind energy systems, UPS, electric vehicles, golf carts, electricity.
- communications, etc.
Applications:
Solar wind hybrid system, UPS battery backup, Wind and solar energy system, Signal system , emergency lighting system, security system, Telecommunication Equipment, Power station and plant room.
Our advantage:
- By high partition, adsorption and strong;
- Easy storage, less maintenance;
- Using ABS plastic shell and valve technology for safe use;
- No memory, no need to discharge battery use, suitable for circuit design;
- The battery is full of power when it's out of factory, no need to use liquid charge;
- Comply with environmental requirements, ease of use;
- The use of lead-calcium alloys, battery self-discharge is very low;
- We possess our own lead grid production technology and production line, which effective help you with quality and cost control.
