| Place of Origin: | China |
| Brand Name: | URILIC |
| Certification: | ISO9001,CE,UL |
| Model Number: | 55W |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood |
| Delivery Time: | 3 working days after received full payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 sets per month |
| Product Item: | High Efficiency Solar Panels | Power: | 55W |
|---|---|---|---|
| Folded Size: | 390*360*30mm | Expanded Dimensions: | 1250*390*10mm |
| Weight: | 2.5kg | Peak Voltage: | 18V |
| Solar Panel Base Material: | FR-4 Glass Fiber Board | Solar Bag Fabric: | Customizable |
| Highlight: | monocrystalline silicon solar module,solar photovoltaic module |
||

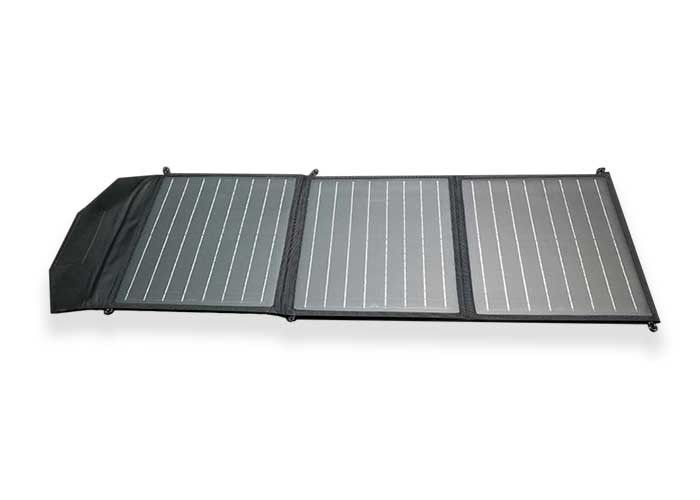

55W 18V Monocrystalline Silicon Solar Folding Bag High Efficiency Solar Panels
Description:
Monocrystalline silicon solar folding bag is a good companion for traveling, making it a portable solar system. Charging anytime, anywhere, with strong sunlight, can power this device. Unique foldable design can be installed on the surface of RVs, boats, cabins, tents, cars, trees, etc. Suitable for family, nature travel, hiking, camping, fishing, picnic, sailing and some outdoor activities.
Technical Data:
|
Model |
U55M-12 |
|||
|
Peak Power (W) |
55(0~+3%) |
|||
|
Open circuit voltage (V) |
21.6 |
|||
|
Peak Voltage (V) |
18.0 |
|||
|
peak current (A) |
3.05 |
|||
|
Short-circuit current (A) |
3.26 |
|||
|
Cell efficiency |
20.0% |
|||
|
Maximum overcurrent (A) |
12A |
|||
|
Rated operating temperature |
48±2°C |
|||
|
Working temperature range |
-40°C- +85°C |
|||
|
Current temperature coefficient |
0.1%/°C |
|||
|
Voltage temperature coefficient |
-0.37%/°C |
|||
|
Power Temperature Coefficient |
-0.45%/°C |
|||
|
Standard Test Conditions |
Irritation: 1000W/m2, |
|||
|
Folding the electrical connection inside the solar package |
3 pieces of 18.3W/18V solar panels in parallel |
|||
|
Folded size |
390*360*30mm |
|||
|
Expanded size |
1250*390*10mm |
|||
|
Weight |
2.5 kgs |
|||
|
Surface Packaging |
PET (glossy/matte optional) |
|||
|
Solar board base material |
FR-4 Fiberglass Board |
|||
|
Connector/connector model |
2*1.5mm 2 / length 3m / Anderson connector (30A) |
|||
|
Solar bag fabric |
Customized according to your needs |
|||
Solar Folding Bag Features:
Solar Folding Bag Application:
The solar folding bag produced by our company has the characteristics of light weight, small volume and easy to carry. We also have data lines and hooks for different products for customers to choose. In the outdoor environment, it absorbs light energy and charge electronic products. Our company's products are durable and practical. They are the first choice for outdoor enthusiasts.
